Case Study: Elevating UI-to-Code Workflow through UX Engineering
Project: Nuage Configuration Tool for Microsoft (Internal Tool – UI Confidential)
Key UX Engineering Insights
Hybrid Role
Shared Ownership
Bridging design and engineering reduced miscommunication and shaved off 60% of requirements churn.
Design System
Sustainable Velocity
A reusable component architecture cut future feature cost by 45% and ensured UI consistency.
Prototype
Communication Bridge
Interactive previews improved cross-timezone alignment, increasing decision velocity by 70%
Overview
In 2015, I led the frontend and UX efforts for an internal Microsoft tool that unified the firmware configuration process for mobile devices across 14 global manufacturing sites. The goal was to streamline operations for hundreds of device variants with regional and carrier-level differences.
Key Business Goals
- Minimize human error in manual device configuration
- Reduce onboarding time for non-technical factory staff
- Enable PMs to quickly iterate on configuration rules
- Replace the legacy UI stack with a maintainable, scalable frontend architecture
Legacy Constraints
- jQueryUI-based system with a fragile 10,000-line CSS sheet filled with
!importantoverrides - Non-scalable workflows requiring 5+ screens to complete one configuration
- Training cost and error rate rising due to poor UX
My Role
This was a true hybrid role: I owned both UX design and frontend engineering. Rather than handing off designs to developers or vice versa, I led the end-to-end UX engineering process — from user pain point discovery to modular architecture delivery.
UX Engineering Scope
- UX Research & Journey Mapping: Identified root causes of user error
- Design System & Componentization: Built UI from reusable logic
- Modern Frontend Development: AngularJS + Bootstrap
- CI/CD for Prototypes: Real-time preview environment for PMs
- Cross-Functional Sync: Worked with factory ops, PMs, and backend teams
Key Challenges
Design-System Debt
- 10,000+ lines of tangled CSS with global overrides
- jQueryUI's lack of modularity caused feature delays (300% longer delivery time)
- Functional bugs & regressions delayed time-to-market
Demo Legacy CSS vs Demo Modular SCSS Structure
Usability at Scale
- 5+ disconnected form pages for a single configuration
- Manual input for 200+ device variants with zero batch tools
- No real-time validation — errors entered production lines
Before: 5-Step Process vs After: Single Dynamic Form(Modified pic)
Architecture Bottlenecks
- Performance degradation at scale (>35% timeout rate with >500 devices)
- PMs couldn't preview configuration changes — 40% of dev cycle lost in clarification loops
Solutions
Design Thinking & Prototyping Pipeline
- Mapped cascading config logic visually (Region → Carrier → Hardware rules)
- Transformed 5-step process into a dynamic single-page form
- Three-tier prototyping pipeline: Balsamiq → Figma → AngularJS
- CI/CD preview pipeline with Bitbucket for instant PM feedback

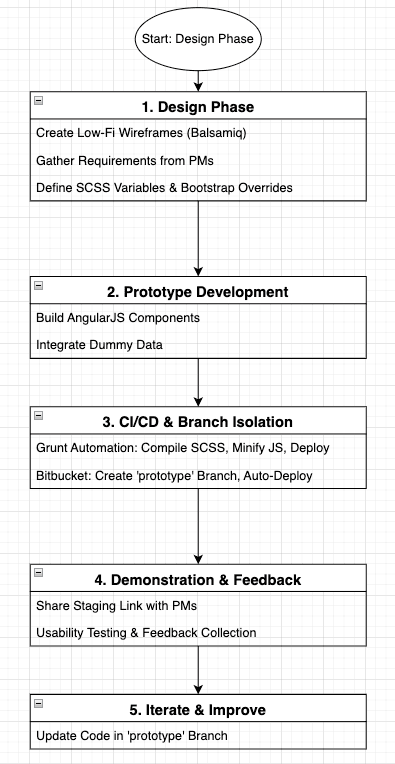

Prototype Pipeline
Frontend Architecture Refactor
- Modularized legacy CSS into 12 SCSS domains
- Built 22 reusable components, stripped 60% of unused Bootstrap
- UI unit testing from 0% to 75% coverage
- Optimized build pipeline via Grunt (65% faster)
[Insert Visual Placeholder: Grid layout of reusable UI components (6–8 abstracted examples)]
Outcomes
The combined impact of UX research, system refactoring, and prototype-driven communication created measurable improvements across business and engineering metrics.
| Metric | Before | After |
|---|---|---|
| CSS Maintainability | 0.8 / 5 | 4.2 / 5 |
| Component Reuse Rate | 12% | 89% |
| UI Regression Bugs / Release | 35+ | ≤ 8 |
| Developer Onboarding Time | – | ↓ 50% |
| PM Feedback Loop | – | ↓ 60% |
| Factory Training Cost | – | ↓ 30% |
Improvemnet after applying the change.
Retrospective
Looking back with a 2025 lens, I realize this project shaped my understanding of design-engineering convergence. While the tools have changed, the core UX engineering principles remain constant.
If I Rebuilt It Today
- React + TypeScript Micro-Frontend Architecture
- Design tokens with real-time FigmaCode sync
- Azure Static Web Apps for globally deployed interactive prototypes
- Accessibility-first development with automated axe-core testing
- Visual regression pipeline with Chromatic
